SP Series
SP100
Compact Spot Welding & Handling Robot
Översikt

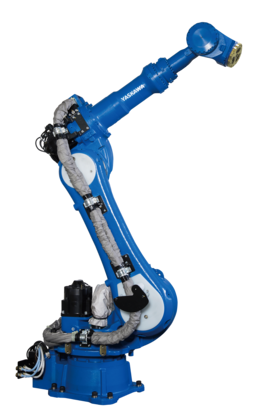

The MOTOMAN SP100 is a compact spot welding and handling robot providing 100 kg payload (including C-adapter) and 2236 mm working range for servo-controlled lightweight welding guns.
This robot is suitable for compact spot welding lines in car body construction with high robot density, for economical welding of small subassemblies, and for space-saving installation on a positioner.
The MOTOMAN SP100 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma-7 servo drive technology which offers high dynamics and energy efficiency, and enables outstanding cycle times.
Teknisk data
- Antal axlar
- 6
- Nyttolast
- 100 kg
- Räckvidd
- 2236 mm
- Repeternoggrannhet
- 0.03 mm
- Vikt
- 660 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 110 °/s
- Maximum Speed U Axis
- 127 °/s
- Maximum Speed R Axis
- 175 °/s
- Maximum Speed B Axis
- 175 °/s
- Maximum Speed T Axis
- 255 °/s
- Monteringsalternativ
- Floor
- Ytterligare specifikationer
- x Nej
