GP FGG Series

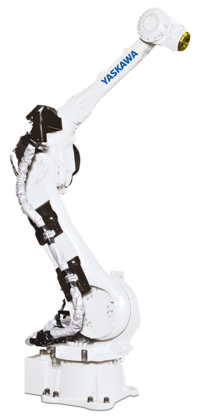

GP50 FGG
6-axis Robot with 50 kg Payload for the Food Industry
Översikt
The GP50 FGG is a highly versatile 6-axis robot with 50 kg payload, 2.051 mm reach and outstanding repeatability of +/- 0.03 mm. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints allows the robot to be used in certain food related applications.
High transfer rates are achievable with the fast and efficient GP50 FGG robot, which offers a perfectly tuned combination of payload / speed / wrist allowable moment. Designed with our Sigma-7-Servo Motor Generation, the GP50 FGG benefits from improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices.
Teknisk data
- Antal axlar
- 6
- Nyttolast
- 50 kg
- Räckvidd
- 2061 mm
- Repeternoggrannhet
- 0.03 mm
- Vikt
- 585 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 178 °/s
- Maximum Speed U Axis
- 178 °/s
- Maximum Speed R Axis
- 150 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 200 °/s
- Monteringsalternativ
- x Nej
- Ytterligare specifikationer
- x Nej
Nerladdningar
| Namn | |||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Brochures | engelska |
Brochures | engelska | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Brochures | tyska |
Brochures | tyska | |
| GP50 FGG 2D CAD/CAE | | CAD/CAE | ||
| GP50 FGG 3D CAD/CAE | | CAD/CAE |
