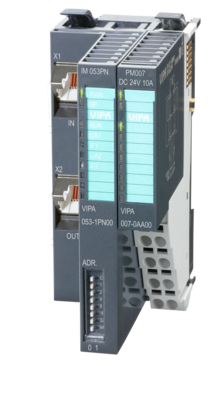

IM 053 - PROFINET-IO-Slave - 053-1PN00
Det smarta och moderna I/O-systemet
Översikt
IM 053 - PROFINET-IO-Slave - 053-1PN00
Ordercode: 053-1PN00
- Integrated 2-port switch
- Transfer rate 100Mbit/s full-duplex
- Supports MRP slave as MRP client, FMM (Free Module Mapping)
- Supports shared device with up to 3 connections
- Supports multiple and single write (acyclic communication)
- Integrated DC 24V power supply for power and electronic section supply of the periphery modules
- Status LEDs
- Up to 64 peripheral modules
